Detailed View
Drilling and milling head, angular, left hand collet chuck, ER25A, external and central coolant supply
| Part Number | 3.200.738 |
| for | 7 Machines |
| Ratio | 1:1 |
| rpm at Input | max. 6000 rpm |
| rpm at Output | max. 6000 rpm |
| Torque at Output | max. 40 Nm |
| Direction of Rotation |  |
| Scope of Delivery | supplied with wrench, excluding collets * Actual size inscribed on the tool |
| Accessories | Collets see Equipment for Toolholders Z2.1 Sealing washers see Equipment for Toolholders Z4.1 Coolant tubes 218.844.220 |
Additional CAD Files:

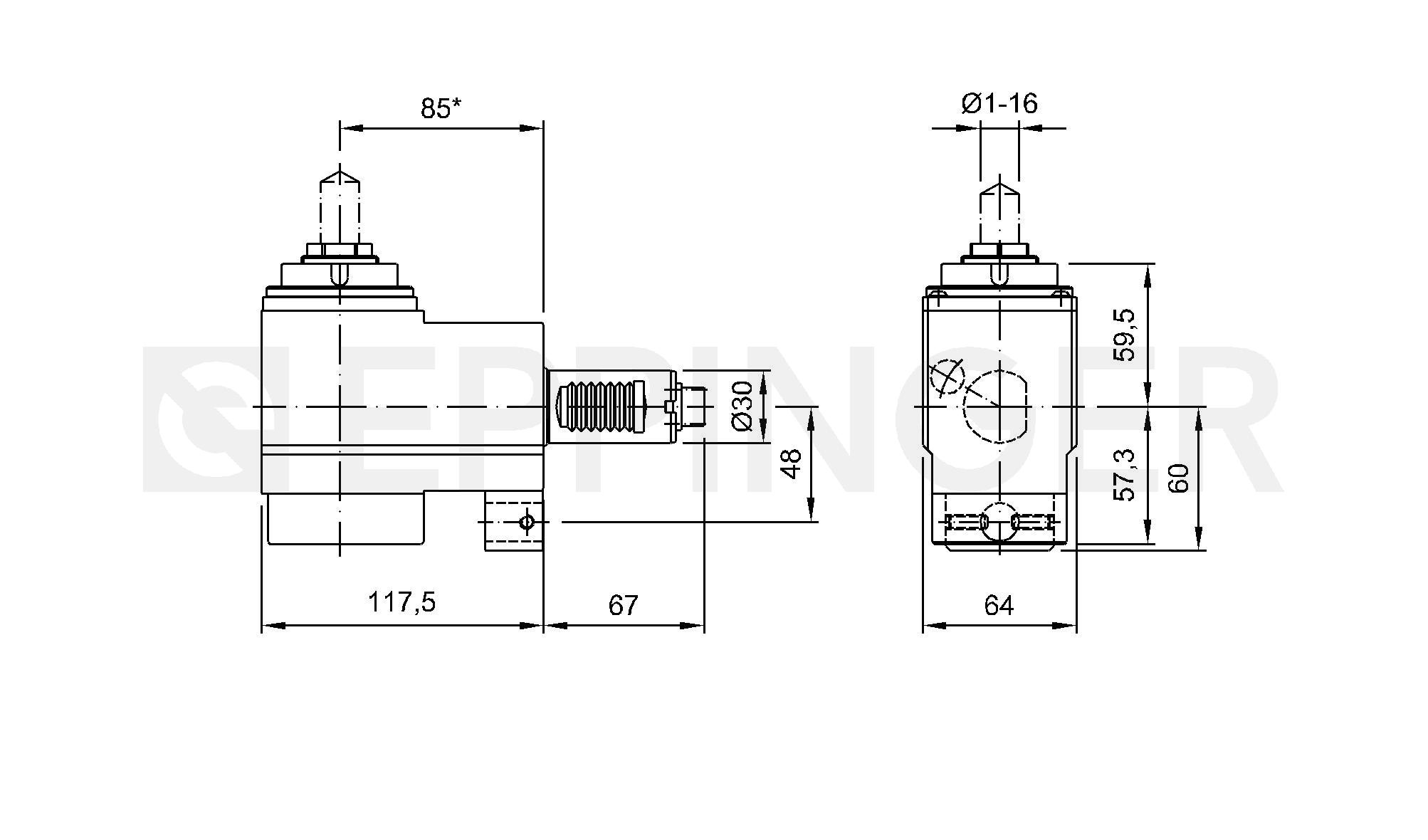

2D-View
3D-View
2D-View
QR-Code
Upload to Smart Phone
