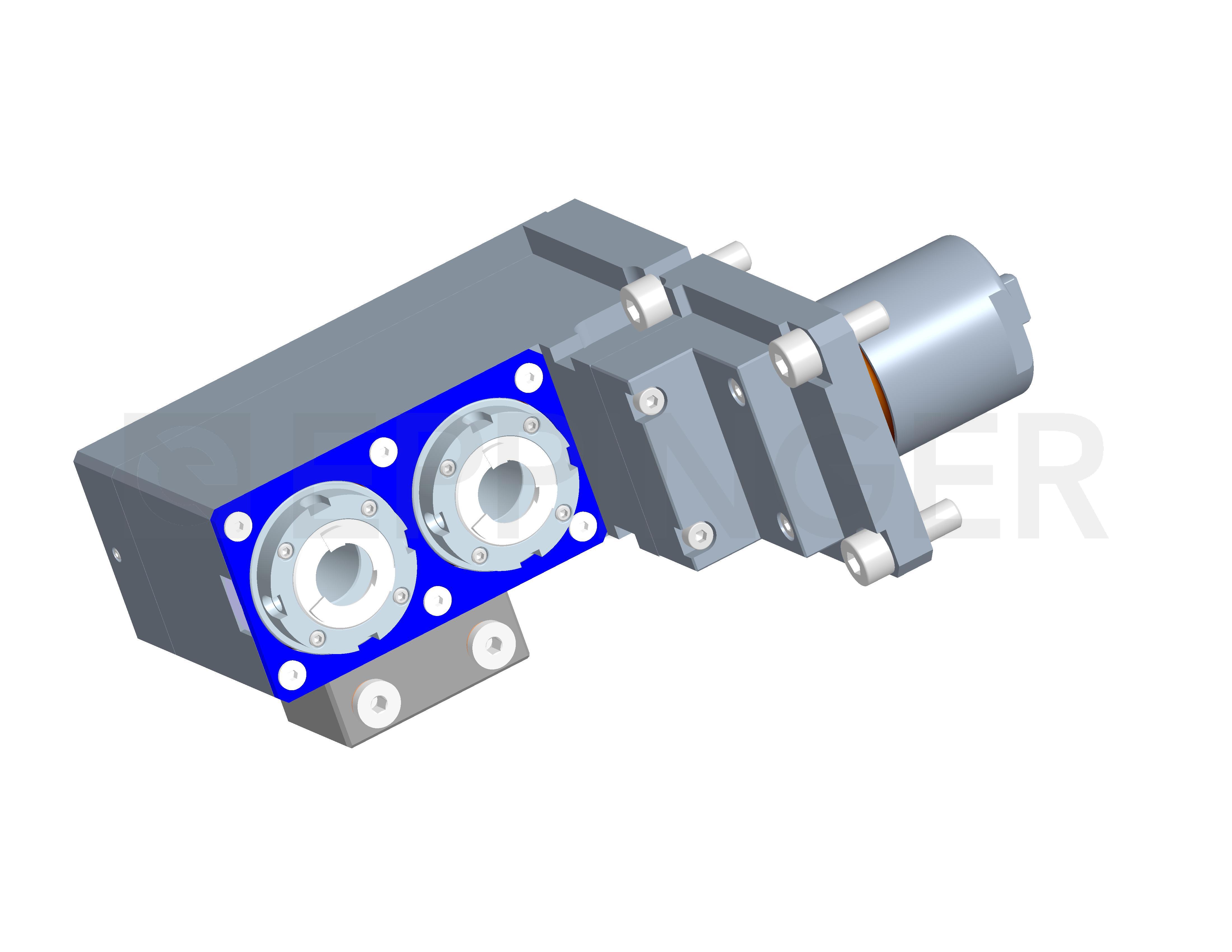

2-spindle front drilling-/milling unit PRECI-FLEX® ER20 with coolant supply (external or internal)
| Part Number | 7.174.450 |
| for | Star SX-38-B |
| Ratio | 1:1 |
| rpm at Input | max. 5700 rpm |
| rpm at Output | max. 5700 rpm |
| Torque at Output | max. 16 Nm |
| Direction of Rotation |  |
| Scope of Delivery | supplied with wrench, excluding collets * Actual size inscribed on the tool |
| Accessories | Collets see Equipment for Toolholders Z2.1 PRECI-FLEX® Adapter Spindle cover see P99.1 |
Additional CAD Files:

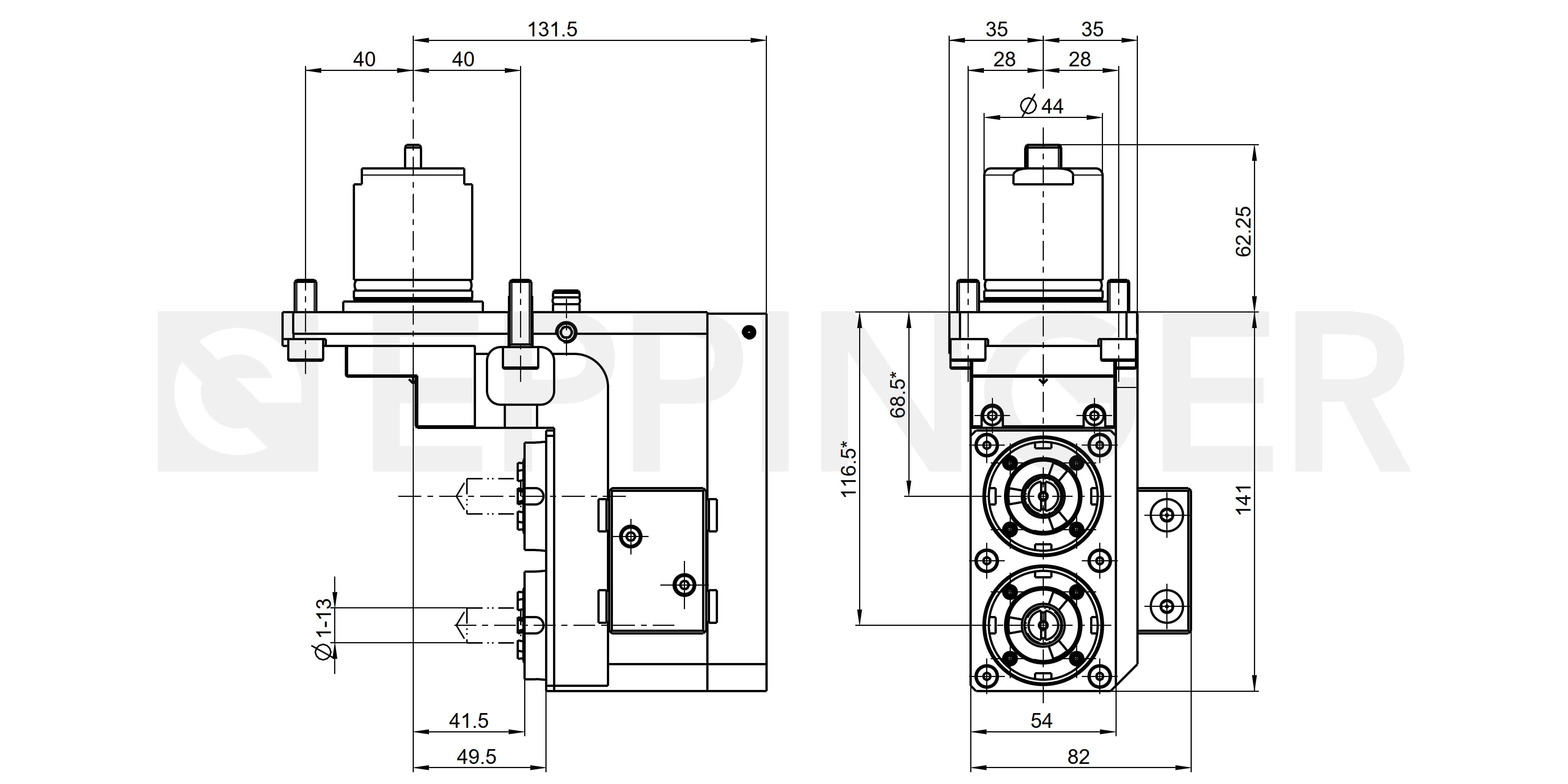

2D-View
3D-View
2D-View
3D-View / QR-Code
Upload to Smart Phone
