Detailed View
Drilling and milling head, straight, left hand-right hand, offset, X-axis 11° collet chuck, ER32A, external coolant supply
| Part Number | 7.070.230 |
| for | Biglia B501/B1000 |
| Ratio | 1:1 |
| rpm at Input | max. 4000 rpm |
| rpm at Output | max. 4000 rpm |
| Torque at Output | max. 40 Nm |
| Scope of Delivery | supplied with wrench, excluding collets |
| Accessories | Collets see Equipment for Toolholders Z2.1 Cover for internal coolant 1088334 |
Additional CAD Files:

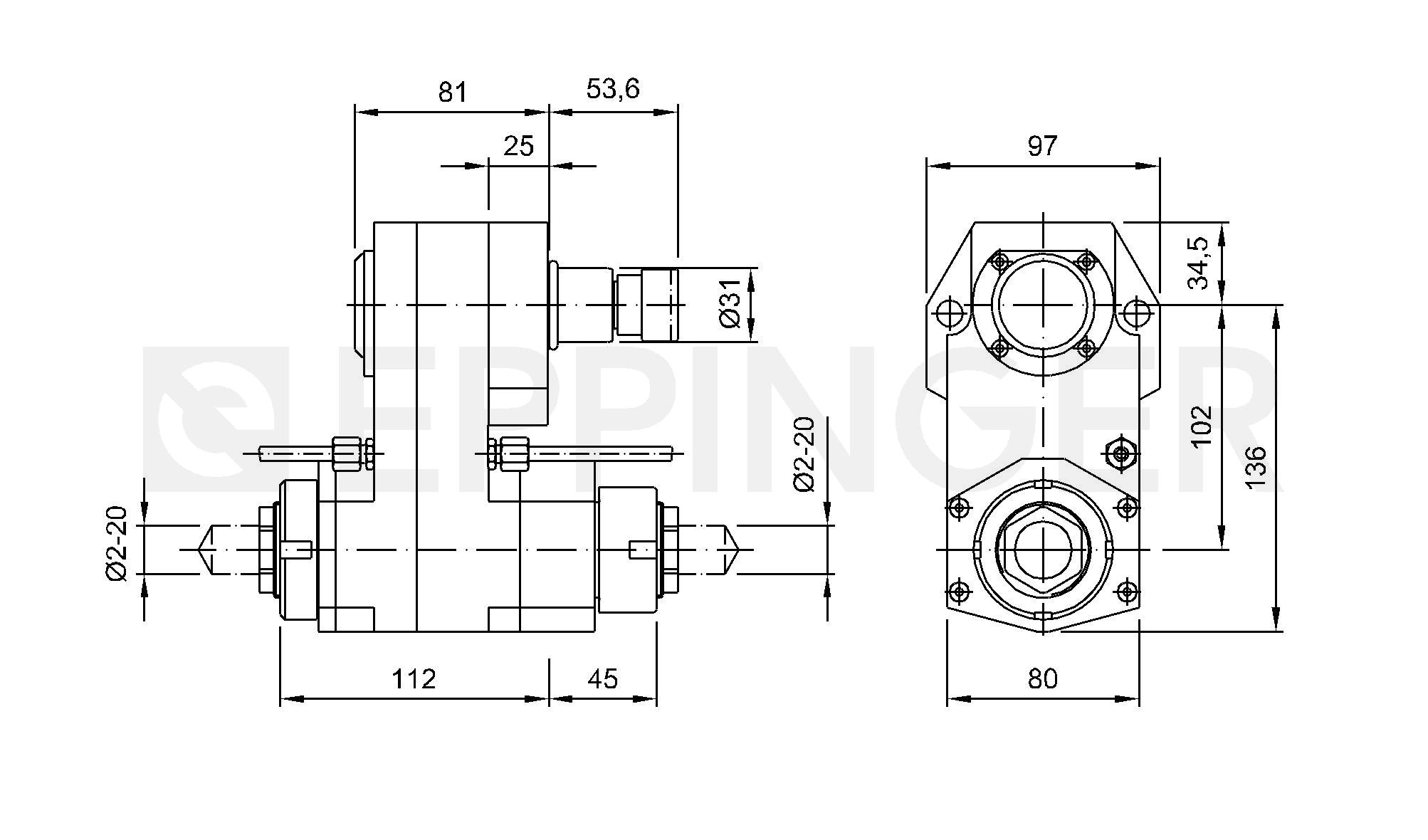

2D-View
3D-View
2D-View
