Detailed View

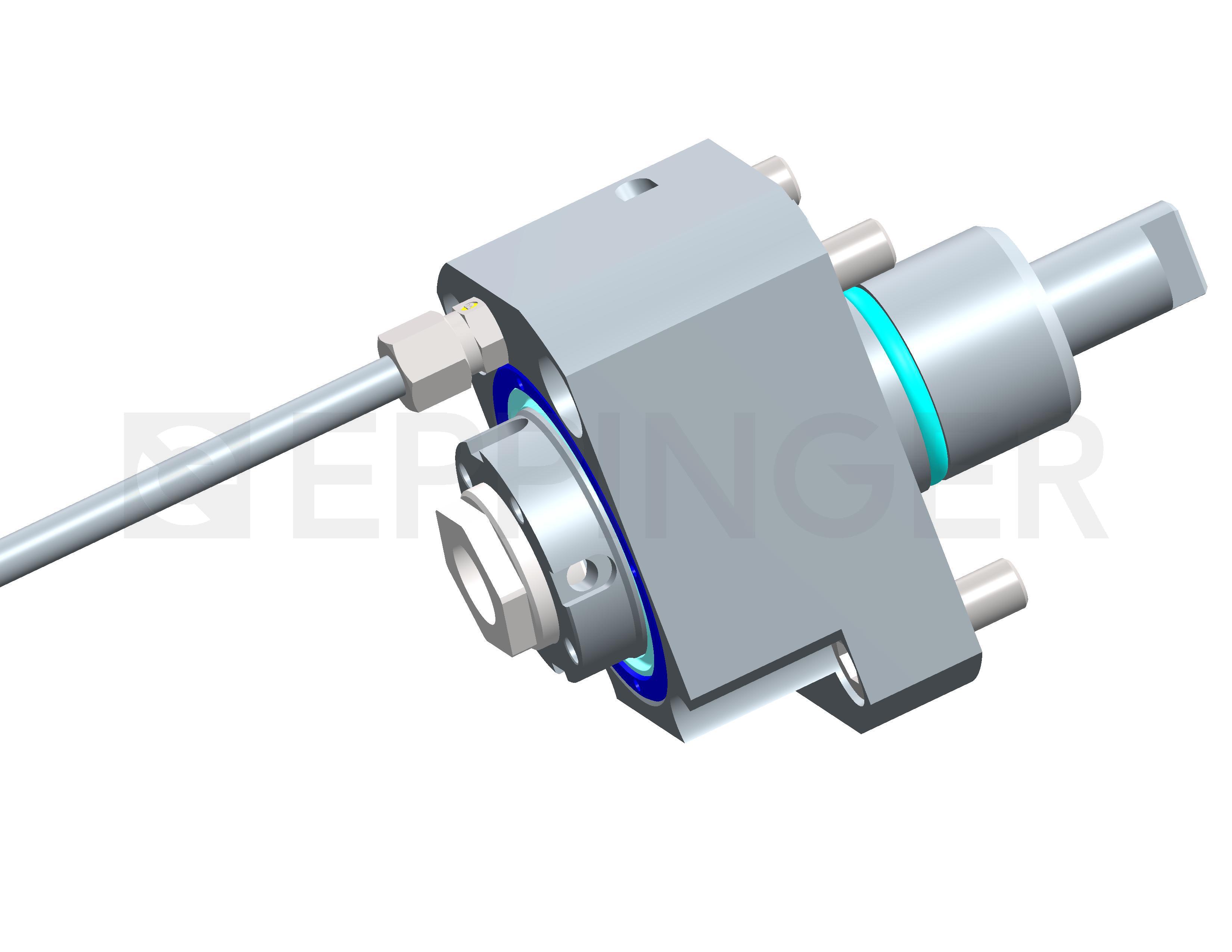

Drilling and milling head, straight collet chuck, ER25A, PRECI-FLEX®, external coolant supply
| Part Number | 7.170.406 |
| for | Murata-Muratec MT12/200 |
| Ratio | 1:1 |
| rpm at Input | max. 4500 rpm |
| rpm at Output | max. 4500 rpm |
| Torque at Output | max. 25 Nm |
| Direction of Rotation |  |
| Scope of Delivery | without wrench and collets |
| Accessories | Collets see Equipment for Toolholders Z2. Wrench for spindle 10006 PRECI-FLEX® Adapter Spindle cover see P99.1 |
Additional CAD Files:

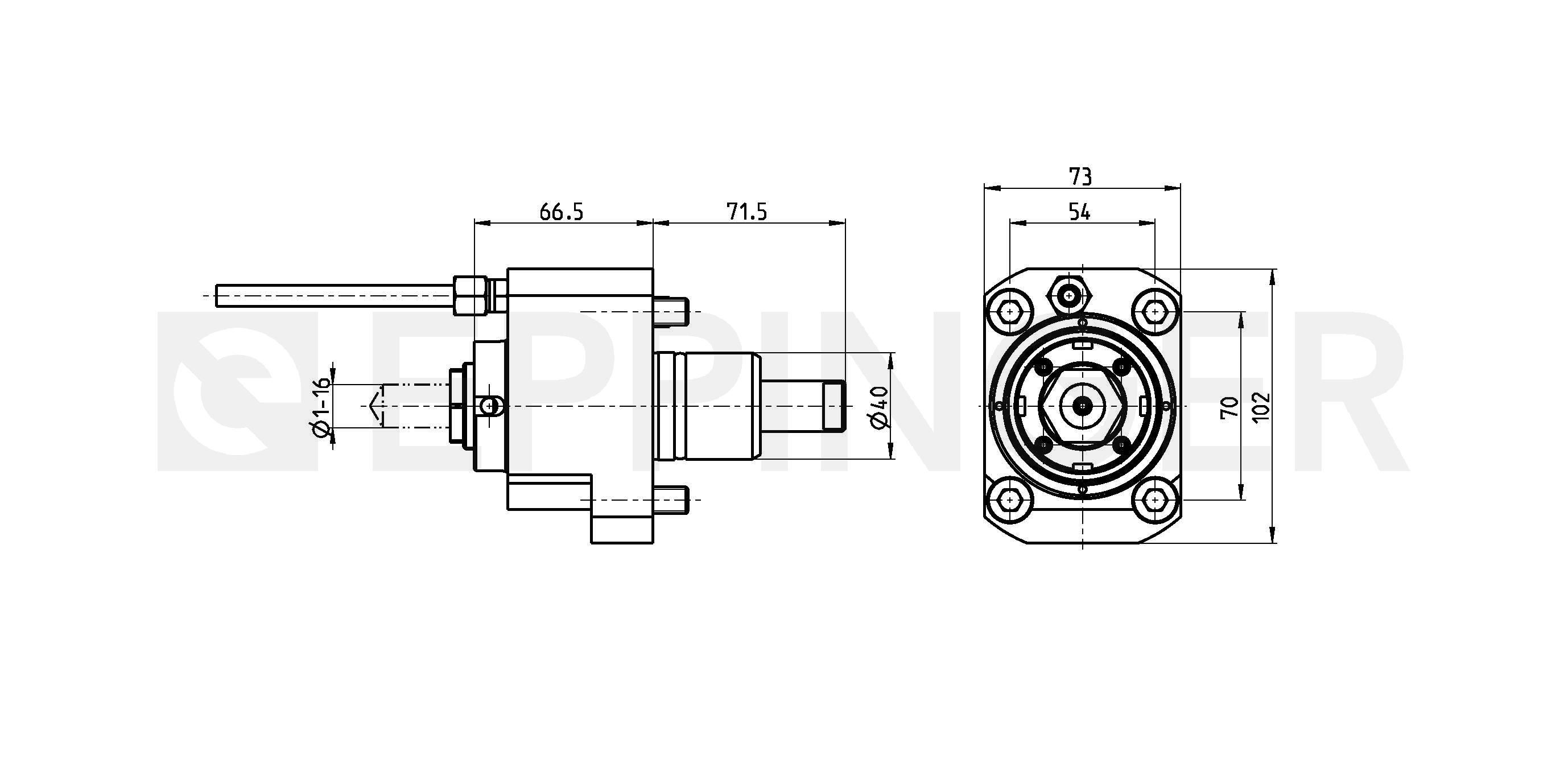

2D-View
3D-View
2D-View
3D-View / QR-Code
Upload to Smart Phone
